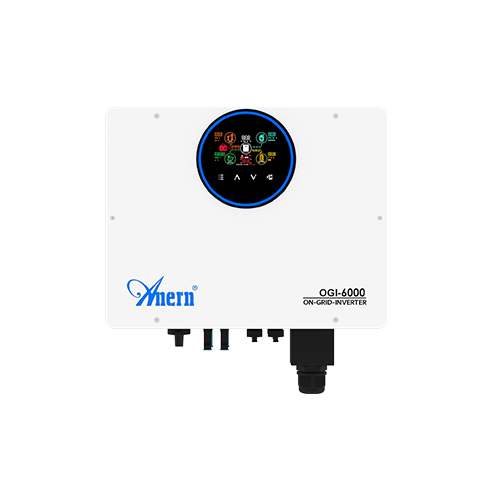

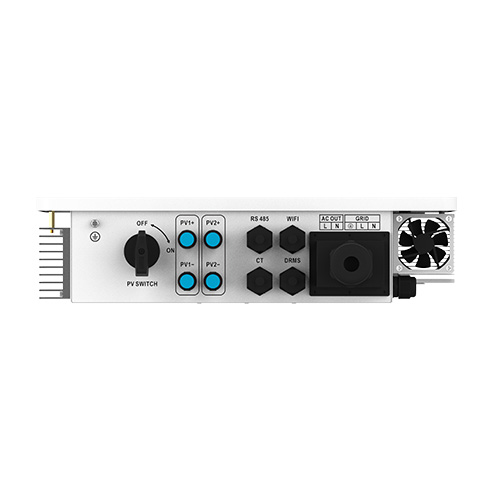

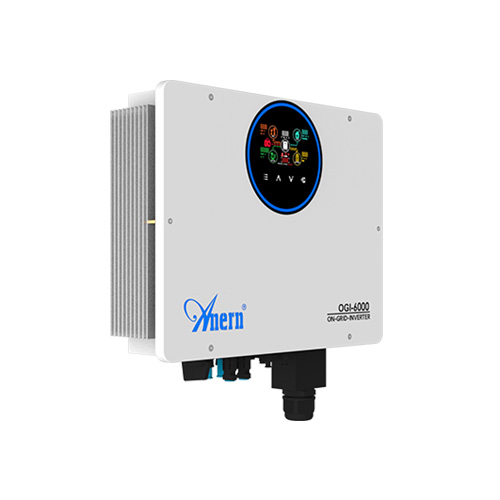

This is a single-phase 6KW hybrid solar inverter. Designed for both off-grid reliability and grid interaction, this unit ensures for major appliances and sensitive electronics stay powered under any condition. With an IP65 rating and integrated WiFi, it’s the ultimate "set-and-forget" solution for modern sustainable living.
6KW Off-Grid Single Phase Hybrid Solar Inverter Parameter
| Model | AN-PVI-6000 | AN-PVI-10000 |
| Rated Output Power | 6000W | 10000W |
| Maximum PV Input Power | 9000W | 13500W |
| MPPT Voltage Range |
60-450Vdc |
|
| Number of MPPT Trackers /Maximum Input Current |
2/18A |
3/18A |
| Maximum AC Input Current |
40A |
50A |
| Nominal Output Voltage |
220/230/240VAC |
|
| Acceptable Input Voltage Range |
184-264.5VAC or 195.5-253VAC or 184-264.4VAC(Selectable) |
|
| Phase |
1-phase in /1-phase out |
|
| Frequency Range |
50 Hz/60 Hz(Auto sensing) |
|
| Dimension: D x W x H (mm) | 360x278x106mm | 360x310x107mm |
| Net Weight (kgs) | 4.92kg | 6.5kg |
Advantages of 6KW Off-Grid Single Phase Hybrid Solar Inverter
IP65 Dual-Output Hybrid Solar Inverter Factory
Anern Inverter Factory focuses on the design and development of solar inverters in order to continuously improve the performance and efficiency of inverters. All products have passed ISO9001, CE, ROHS and TUV certifications, and product quality is in line with international standards. As a leader in the solar industry, Anern is committed to providing customers with high-quality and high-efficiency inverter products.
