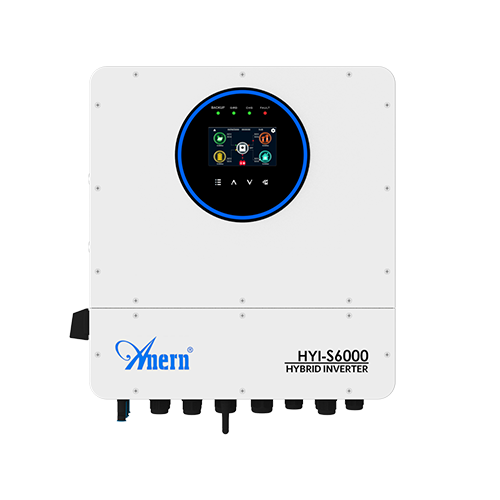

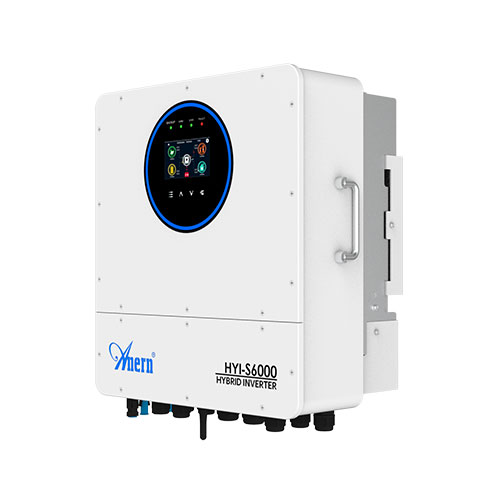

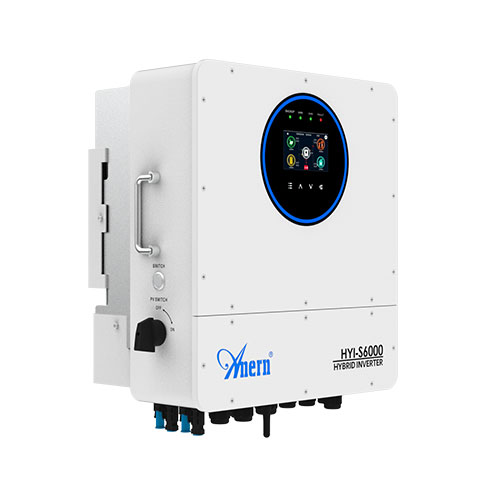

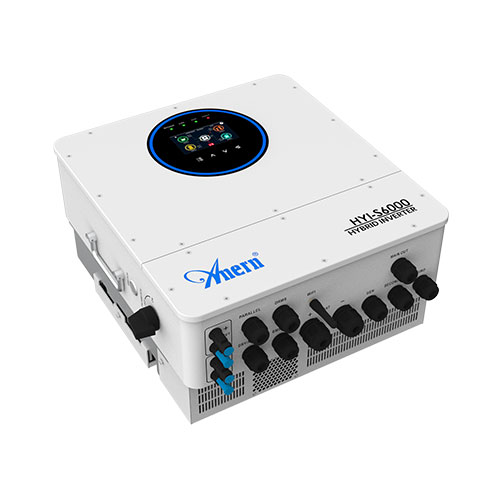

The new IP65-rated hybrid solar inverter ships directly from Anern's factory in China. It’s not only designed for flexible energy storage solutions, but also features smart load management, seamless on-grid/off-grid operation, and reliable backup power. This makes it an ideal choice for wholesale distributors seeking high-quality, durable, and efficient solar products.
IP65 Dual-Output Hybrid Solar Inverter Parameter
| Model | AN-PVI-6000 | AN-PVI-10000 |
| Rated Output Power | 6000W | 10000W |
| Maximum PV Input Power | 9000W | 16200W |
| MPPT Voltage Range |
50-450Vdc |
|
| Number of MPPT Trackers /Maximum Input Current |
2/18A |
2/18A+36A |
| Maximum AC Input Current |
40A |
60A |
| Nominal Output Voltage |
220/230/240VAC |
|
| Acceptable Input Voltage Range |
90-280VAC |
|
| Phase |
1-phase in /1-phase out |
|
| Frequency Range |
50 Hz/60 Hz(Auto sensing) |
|
| Dimension: D x W x H (mm) | 500x483x235.5mm | 600x483x260mm |
Advantages of IP65 Dual-Output Hybrid Solar Inverter

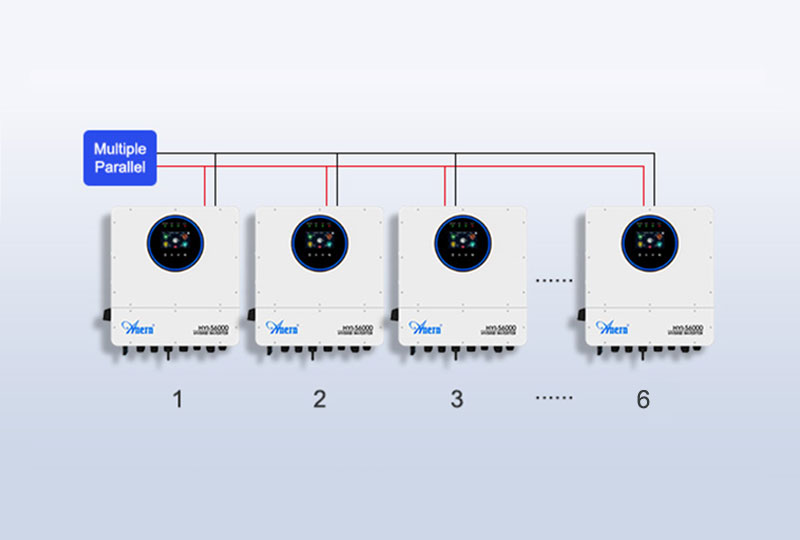

Configured Parallel Scalability
Parallel Scalability(Up to 6 Units): Allows system expansion up to six parallel units, providing significant flexibility for large residential and commercial projects.
User-Centric Design& Seamless Battery Integration
The inverter's built-in current transformers simplify installation and make accurate system monitoring easier. Built-in BMS, communication(RS485) and user-adjustable charging parameters ensure compatibility and optimal performance with various battery types, forming a complete Energy Storage Solution.

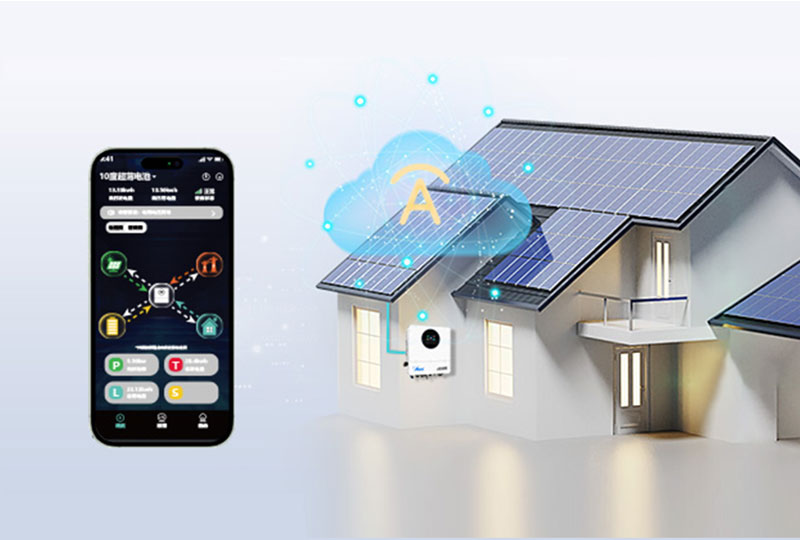

Intelligent Power Flow Control
It features a user-friendly color touchscreen LCD display with a wide range of functions. Features user-selectable priority settings (PV, Battery, or On-Grid) for self-consumption optimization and efficient energy dispatch. The user-friendly color touch LCD offers richer functionality.

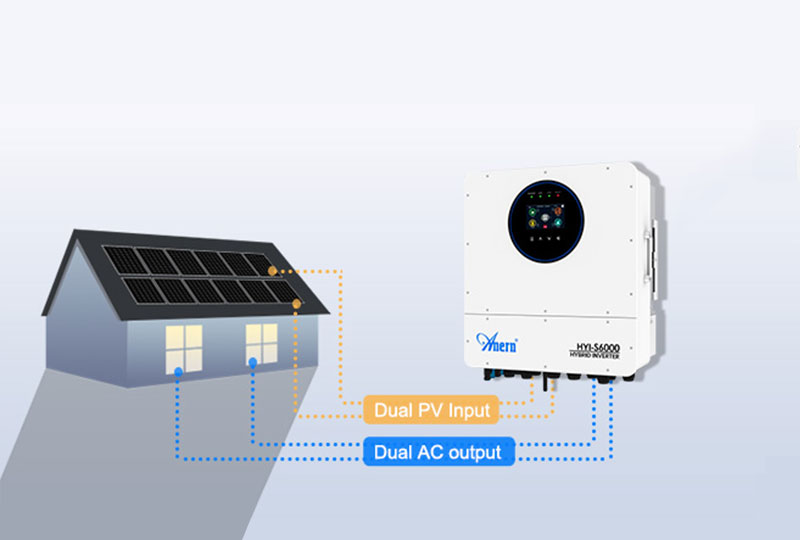

Dual-Output Capability

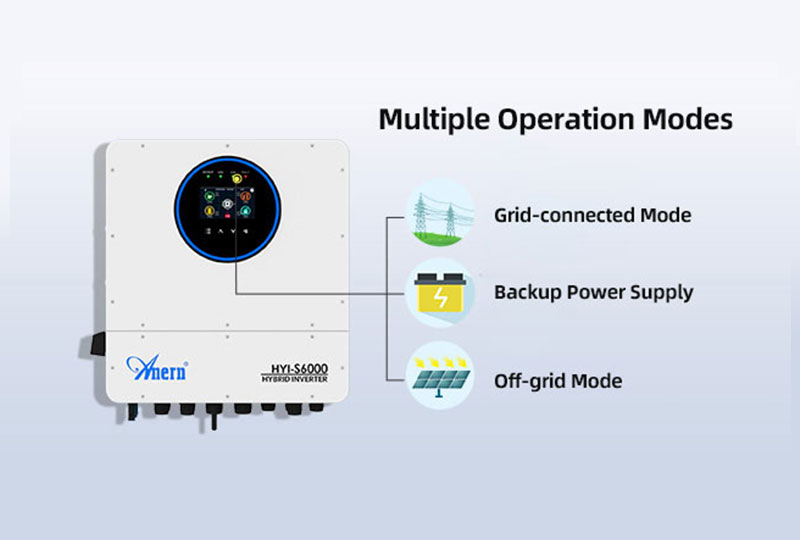

Provides two independent AC outputs with automatic transfer switch, offering uninterrupted, Reliable Power Backup (Support Grid-tie/Off-grid/Backup modes) essential for critical loads.

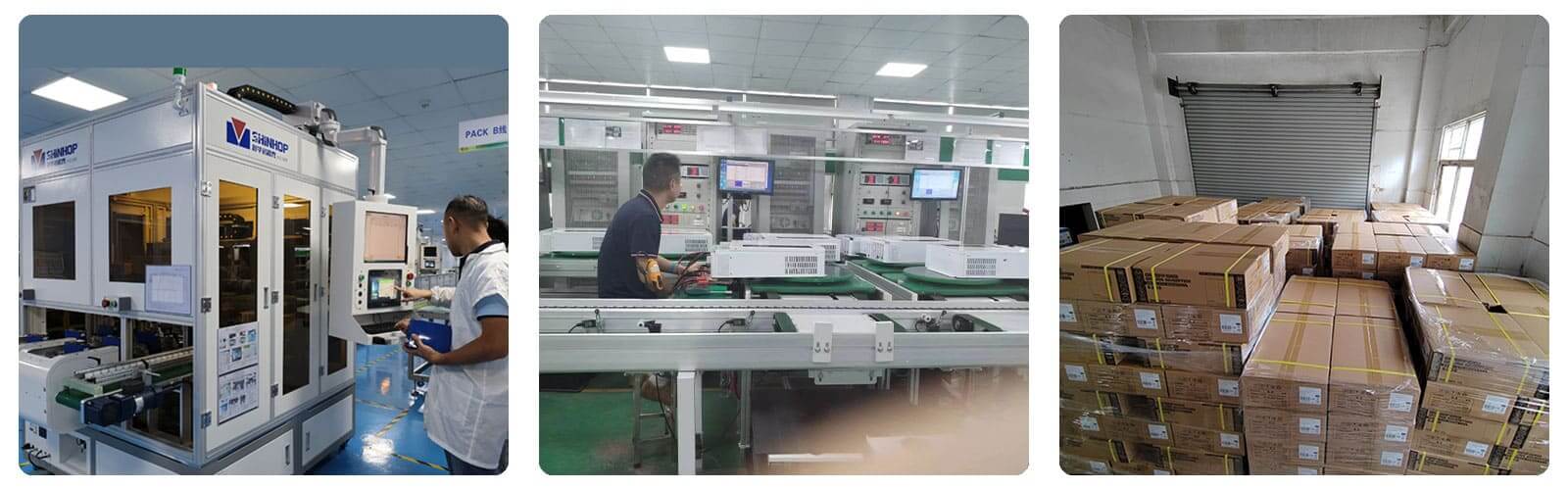

IP65 Dual-Output Hybrid Solar Inverter Factory
Anern Inverter Factory focuses on the design and development of solar inverters in order to continuously improve the performance and efficiency of inverters. All products have passed ISO9001, CE, ROHS and TUV certifications, and product quality is in line with international standards. As a leader in the solar industry, Anern is committed to providing customers with high-quality and high-efficiency inverter products.
