Provides clean and stable power, ensuring compatibility with a wide range of electronic devices.

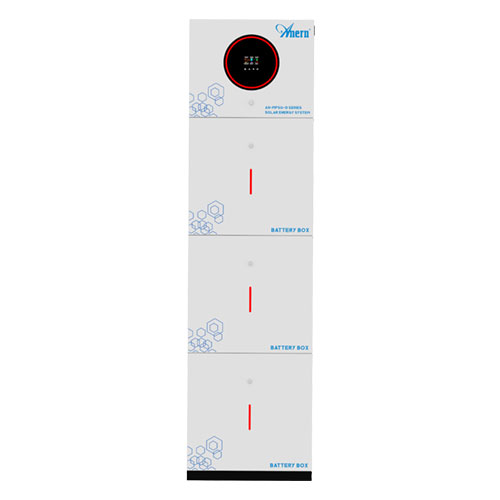

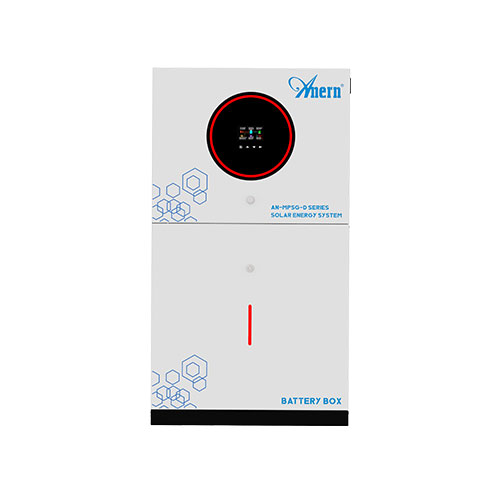

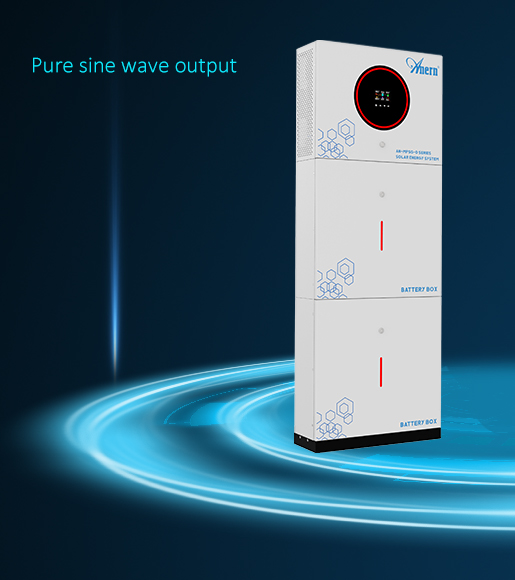

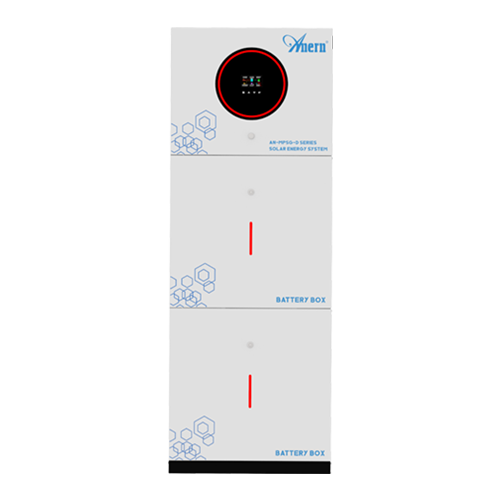

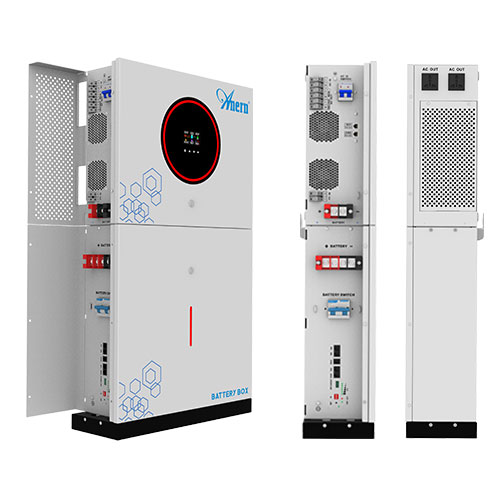

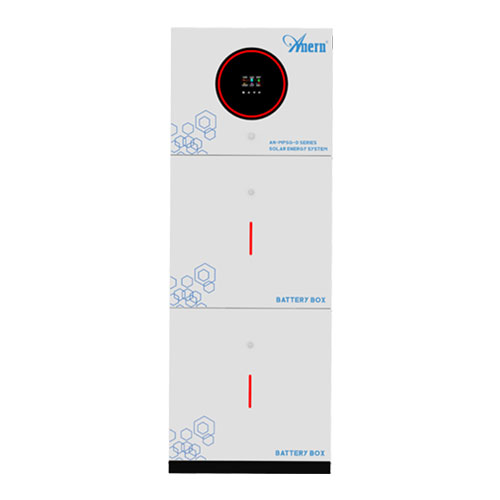

This is an advanced stacked solar energy storage system developed by Anern. The system is designed to meet various energy needs, with highly integrated performance, providing a comprehensive solar energy solution. Models with rated power of 4200W, 6200W and high capacity 10200W are available to adapt to various application scales. This integrated energy storage system seamlessly integrates pure sine wave solar hybrid inverters and intelligent energy management, making it an ideal choice for large power consumers as well as commercial applications.
Solar Stacked Energy Battery Storage System Parameter
| Model: INVERTER | MSPG-D4200 | MSPG-D6200 | MSPG-D10200 |
| Maximum PV Input Power | 6200W | 6500W | 10800W |
| MPPT Voltage Range | 60-450Vdc | 60-450Vdc | 90-450Vdc |
| Number of MPPT Trackers /Maximum Input Current | 1/18A | 1/22A | 2/18A |
| Rated Output Power | 4200W | 6200W | 10200W |
| Nominal Output Voltage | 220/230/240VAC | 220/230/240VAC | 220/230/240VAC |
| Acceptable Input Voltage Range | 90-280VAC or 170-280VAC | ||
| Frequency Range | 50 Hz/60 Hz(Auto sensing) | ||
| Maximum AC Input Current | 30A | 40A | 50A |
| Nominal DC Voltage | 24V dc | 48V dc | 48V dc |
| Maximum Charging Current | 120A | 120A | 160A |
| Maximum AC Charging Current | 100A | 100A | 160A |
| Model: Battery | |||
| Typical Voltage | 25.6V | 51.2V | 51.2V |
| Typical Capacity | 200AH*1pcs | 100AH*2pcs | 100AH*3pcs |
| Energy storage | 5KWH | 10KWH | 15KWH |
| Max. Charge Current | 50A | 100A | 150A |
| Max. Discharge Current | 200A | 200A | 300A |
| Battery Type | LiFePO4 | ||
Advantages Of Solar Stacked Energy Battery Storage System
Provides clean and stable power, ensuring compatibility with a wide range of electronic devices.

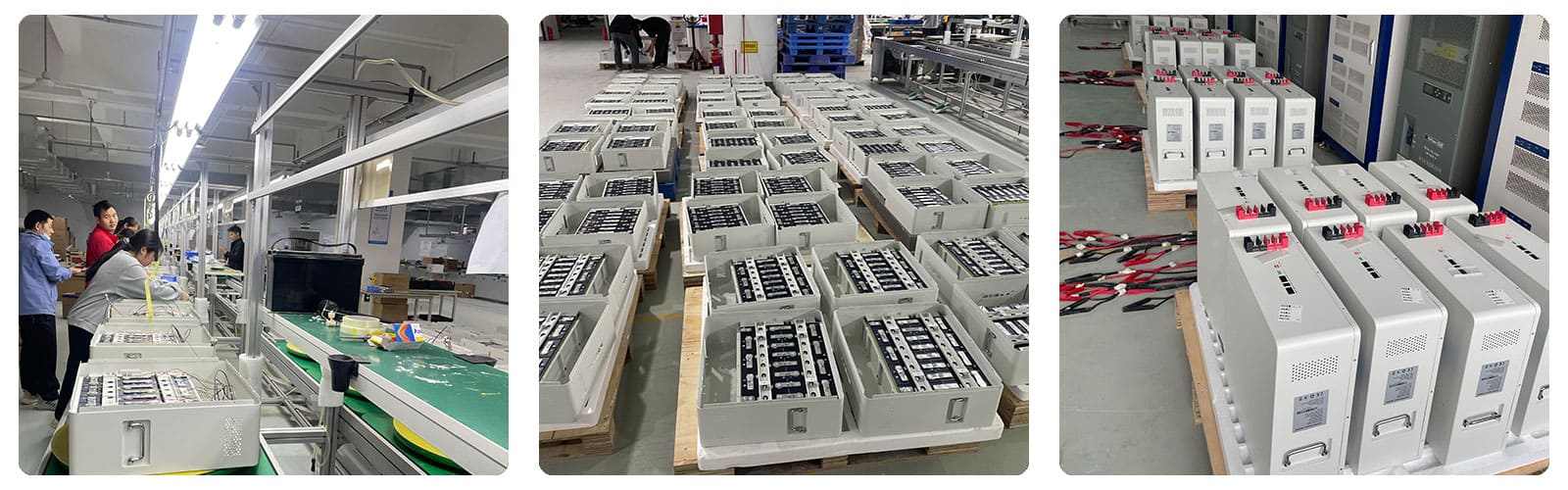

Solar Stacked Energy Battery Storage System Factory
Anern's solar portable storage system factory is where cutting-edge technology meets exquisite craftsmanship. With world-leading production lines and an innovative team, we are dedicated to creating efficient, portable solar energy storage solutions. Every product undergoes rigorous quality control and lean manufacturing processes here to ensure the highest standards.
Add :5th Floor, Building B, No.2817 Kaichuang Avenue, Science Zone, Huangpu District, Guangzhou, China
