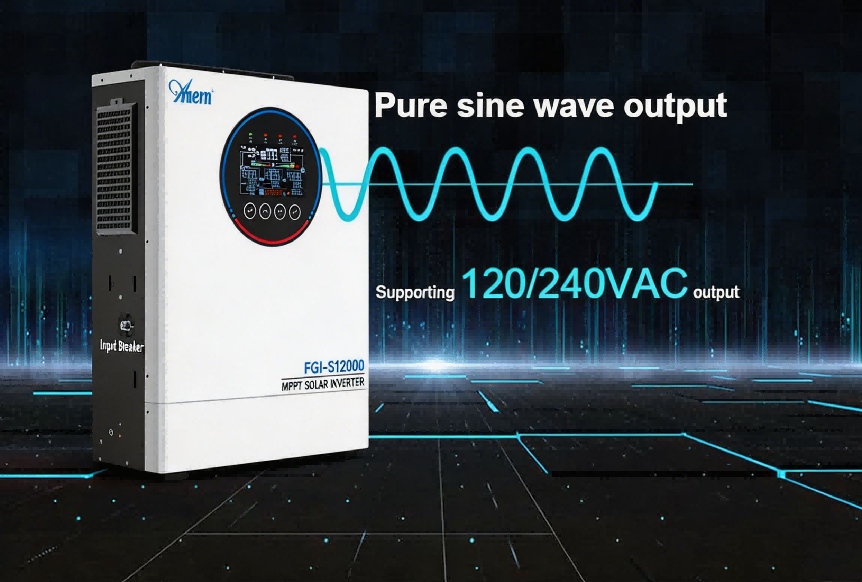

Anern Solar inverter features pure sine wave output technology, supporting battery-free operation. It has a one-button factory reset function and can automatically activate the lithium battery via AC power and photovoltaic power generation.
It incorporates a high-current MPPT solar controller, providing a wide range of photovoltaic input voltages. Its integrated dustproof design makes it suitable for harsh environments, and it employs intelligent charging technology to extend battery life.
|
Model |
AN-FGI-S1500 |
AN-FGI-S2500 |
AN-FGI-S4000 |
AN-FGI-S5000 |
AN-FGI-S6500 |
AN-FGI-S12000 |
|
Phase |
1-phase in /1-phase out |
|||||
|
Maximum PV Input Power |
800W |
3000W |
5000W |
9000W |
9000W |
15000W |
|
Rated Output Power |
1500W |
2500W |
4000W |
5000W |
6500W |
12000W |
|
MPPT Voltage Range |
17-115Vdc |
30-400Vdc |
60-450Vdc |
|||
|
Number of MPPT Trackers/Maximum Input Current |
1/18A |
1/27A |
2/22.5A |
|||
|
Nominal Output Voltage |
220/230/240VAC |
|||||
|
Acceptable Input Voltage Range |
90-280 VAC |
|||||
|
Frequency Range |
50 Hz/60 Hz(Auto sensing) |
|||||
|
Nominal DC Voltage |
12Vdc |
24Vdc |
48Vdc |
|||
|
Maximum Solar Charging Current |
50A |
100A |
100A |
160A |
120A |
160A |
|
Maximum AC Charging Current |
50A |
100A |
100A |
160A |
120A |
160A |
|
Maximum Charging Current |
100A |
100A |
100A |
160A |
120A |
160A |
|
DimensionDxWxH(mm) |
320*227*110 |
375*290*110 |
435*285*98 |
410*336*115 |
440*355*117 |
527*435*138 |
|
Net Weight (kg) |
3.45kg |
4.8kg |
5.6kg |
8.0kg |
8.4kg |
14.5kg |
|
Packing details |
||||||
|
Size |
350*270*165mm |
415*340*165mm |
470*335*150mm |
445*385*165mm |
495*415*175mm |
580*500*205mm |
|
G.W/Pcs |
4.15KG |
5.6KG |
6.3kg |
8.8kg |
9.4kg |
16kg |
 |
Current and voltage stability |
|
Built-in 160A MPPT Controller & Wide PV Input Voltage |
 |
 |

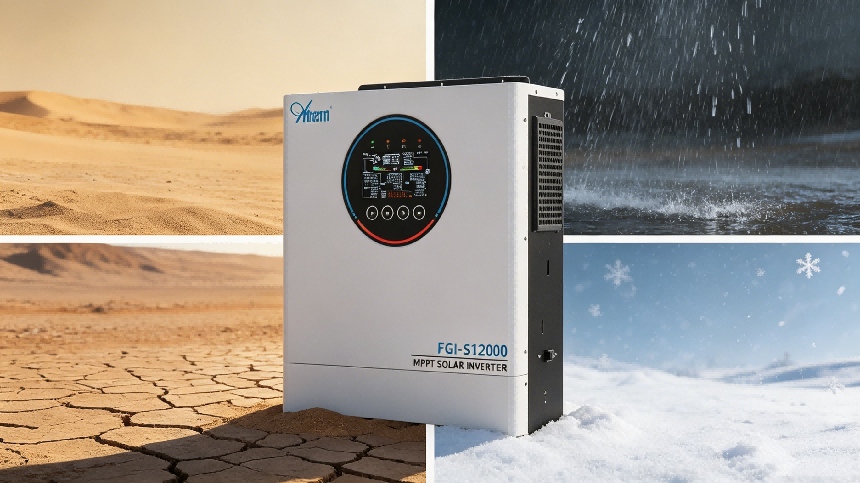

Smart Battery Protection & Harsh Environment Resistance |

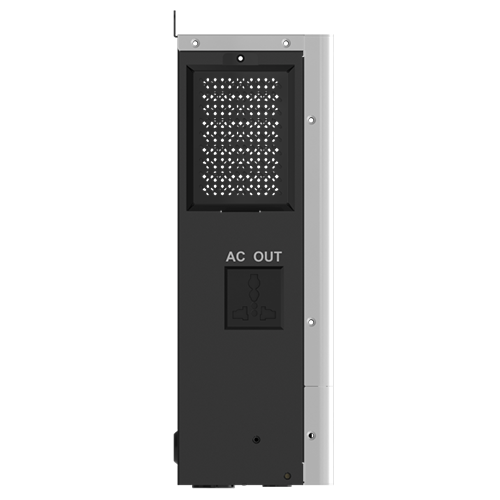

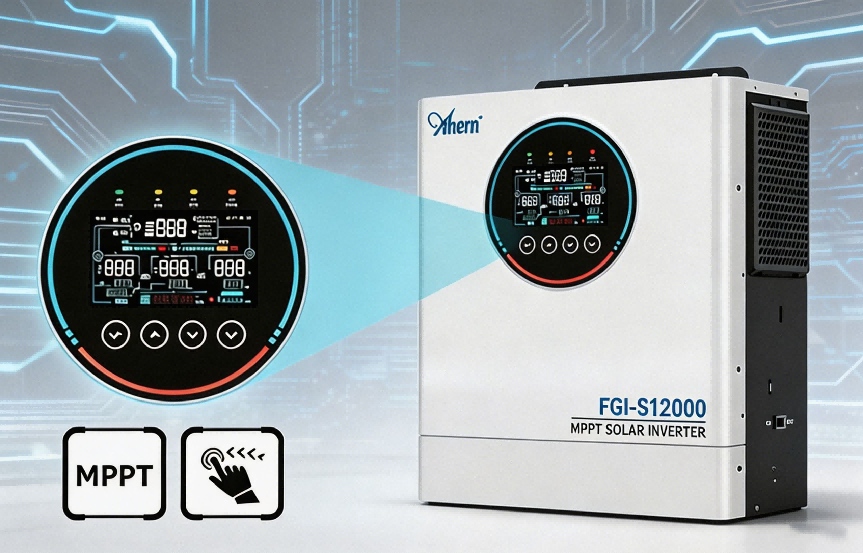

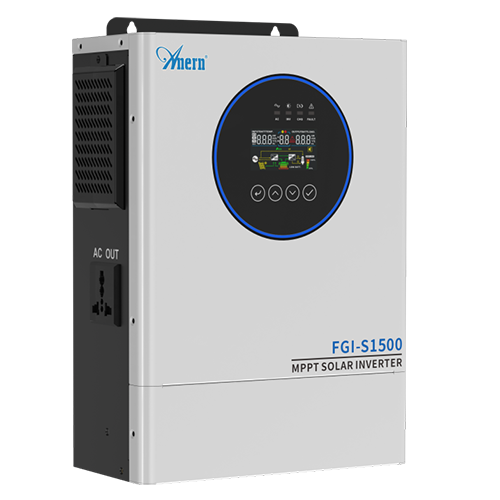

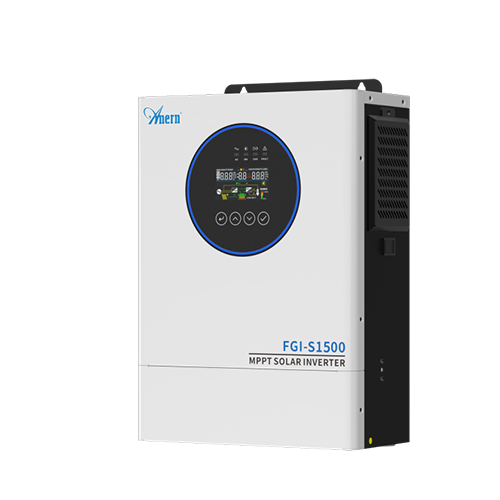

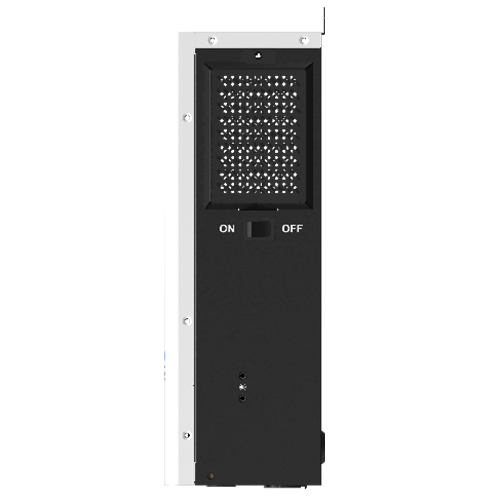

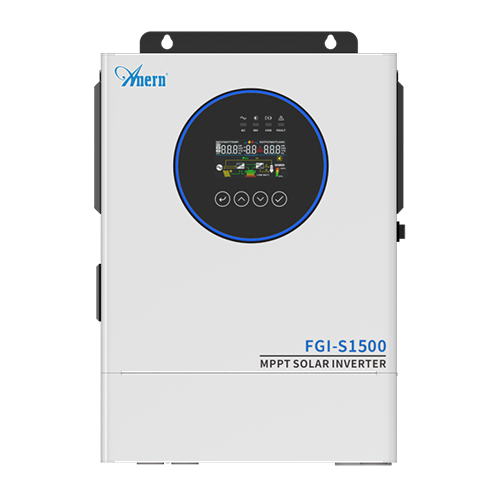

1.5KW-12KW Single-Phase MPPT Solar Inverter

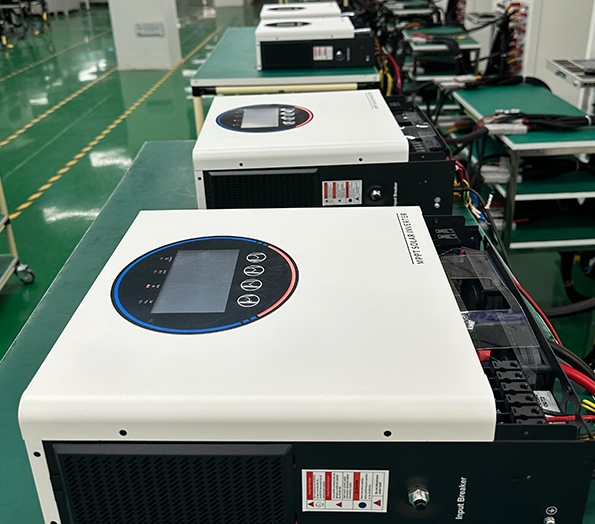

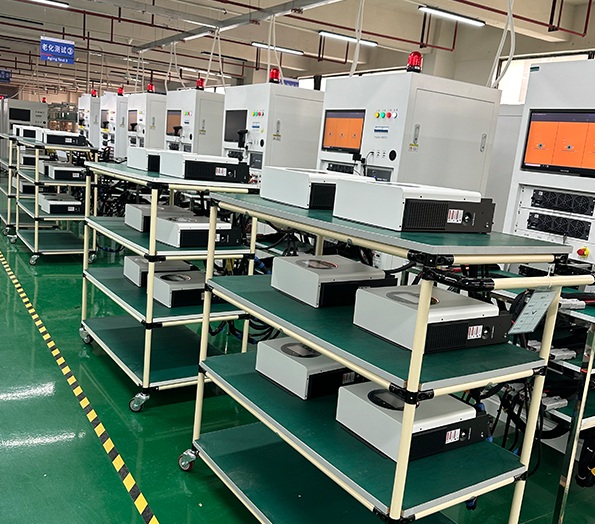

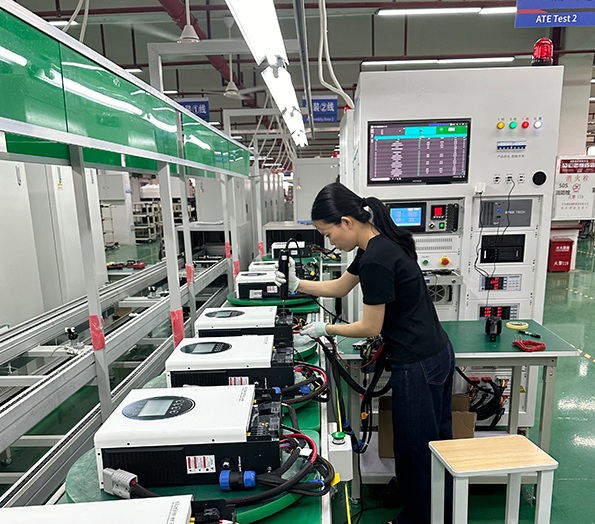

Anern Inverter Factory specializes in the design, development and production of advanced solar inverters to optimize product stability, intelligence and environmental adaptability. All products are certified with ISO9001, CE, ROHS and TUV, fully meeting international quality standards. With mature manufacturing technology and rich industry experience, Anern is dedicated to providing global customers with reliable, high-efficiency and cost-effective solar inverter products.
 |
 |
 |
