Anern solar high-efficiency pure sine wave solar inverter supports battery-free operation for flexible power use. Equipped with built-in 120A max current MPPT solar controller, it features wide PV input voltage range for strong compatibility. It realizes automatic lithium battery activation via AC and PV input, adopting smart charging technology to effectively extend battery service life. Built-in dustproof structure adapts to harsh working environments. It supports one-key factory reset for easy maintenance, optional WiFi remote monitoring for convenient real-time status check, and comes with stylish RGB indicator lights, delivering stable, durable and intelligent solar power conversion solutions for various scenarios.

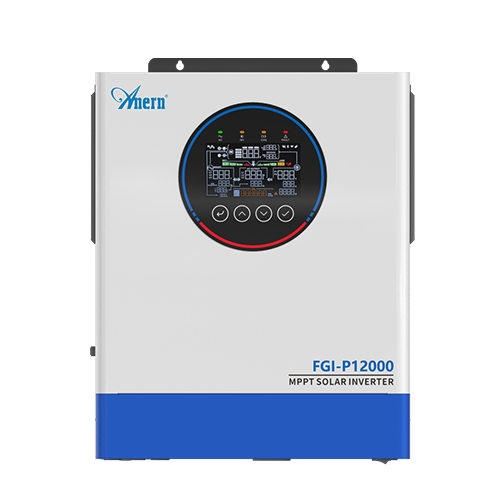

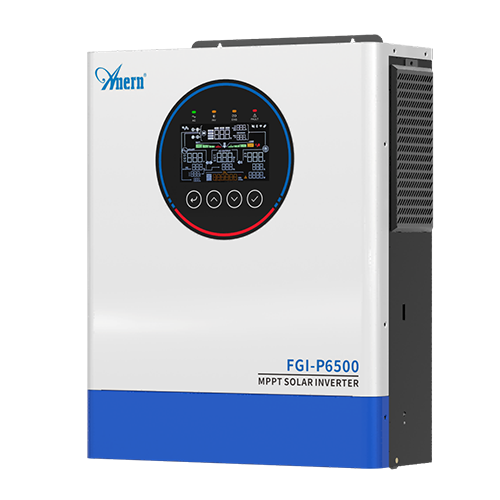

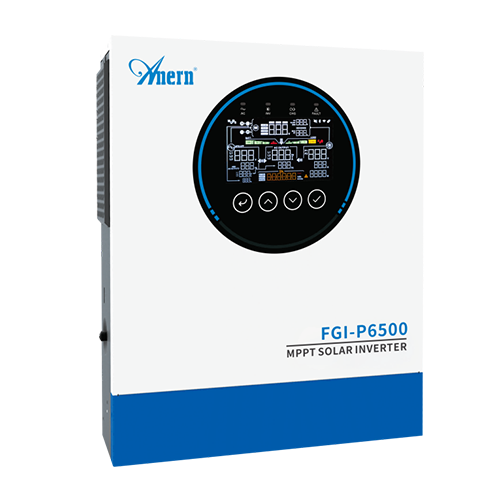

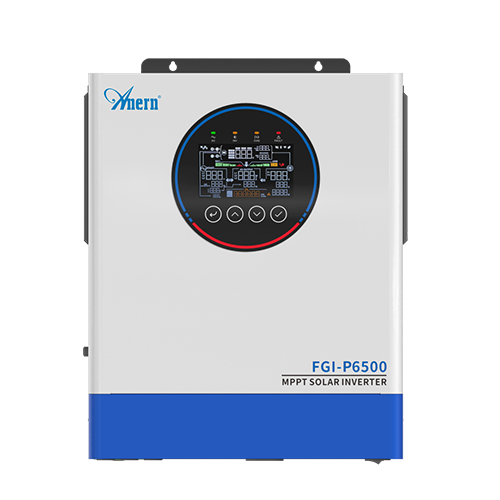

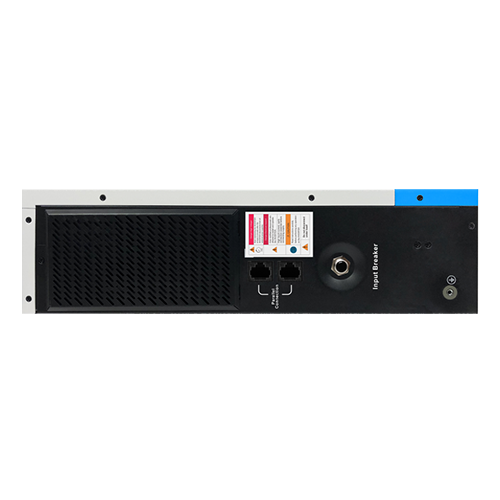

6KW-12KW Multiple Parallel Connections MPPT Solar Inverter
|
Model |
AN-FGI-P6500 |
AN-FGI-P12000 |
|
Phase |
1-phase in /1-phase out |
|
|
Maximum PV Input Power |
9000W |
15000W |
|
Rated Output Power |
6500W |
12000W |
|
MPPT Voltage Range |
60-450Vdc |
|
|
Number of MPPT Trackers/Maximum Input Current |
1/27A |
2/22.5A |
|
Nominal Output Voltage |
220/230/240VAC |
|
|
Acceptable Input Voltage Range |
90-280 VAC |
|
|
Frequency Range |
50 Hz/60 Hz(Auto sensing) |
|
|
Nominal DC Voltage |
48Vdc |
|
|
Maximum Solar Charging Current |
120A |
160A |
|
Maximum AC Charging Current |
120A |
160A |
|
Maximum Charging Current |
120A |
160A |
|
DimensionDxWxH(mm) |
440*355*117 |
527*435*138 |
|
Net Weight (kg) |
8.4 |
14.5 |
|
Supported number of parallel connections |
9pcs |
6pcs |
|
Packing details |
||
|
Size |
495*415*175mm |
580*500*205mm |
|
G.W/Pcs |
9.4kg |
16kg |
Advantages of 6KW-12KW Multiple Parallel Connections MPPT Solar Inverter

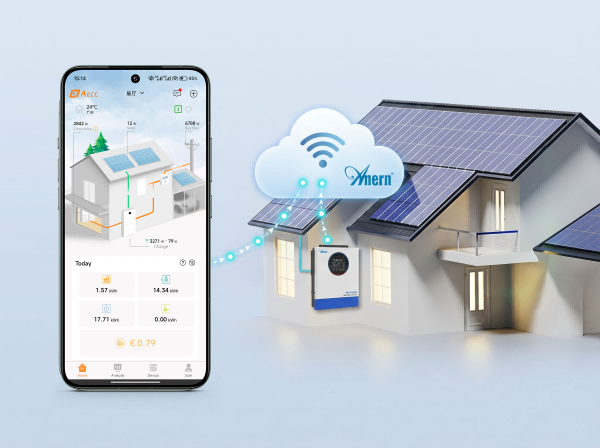

WIFl Remote Monitoring & RGB Lights
The product offers an optional WiFi remote monitoring configuration, allowing users to easily view product status and various power consumption data.

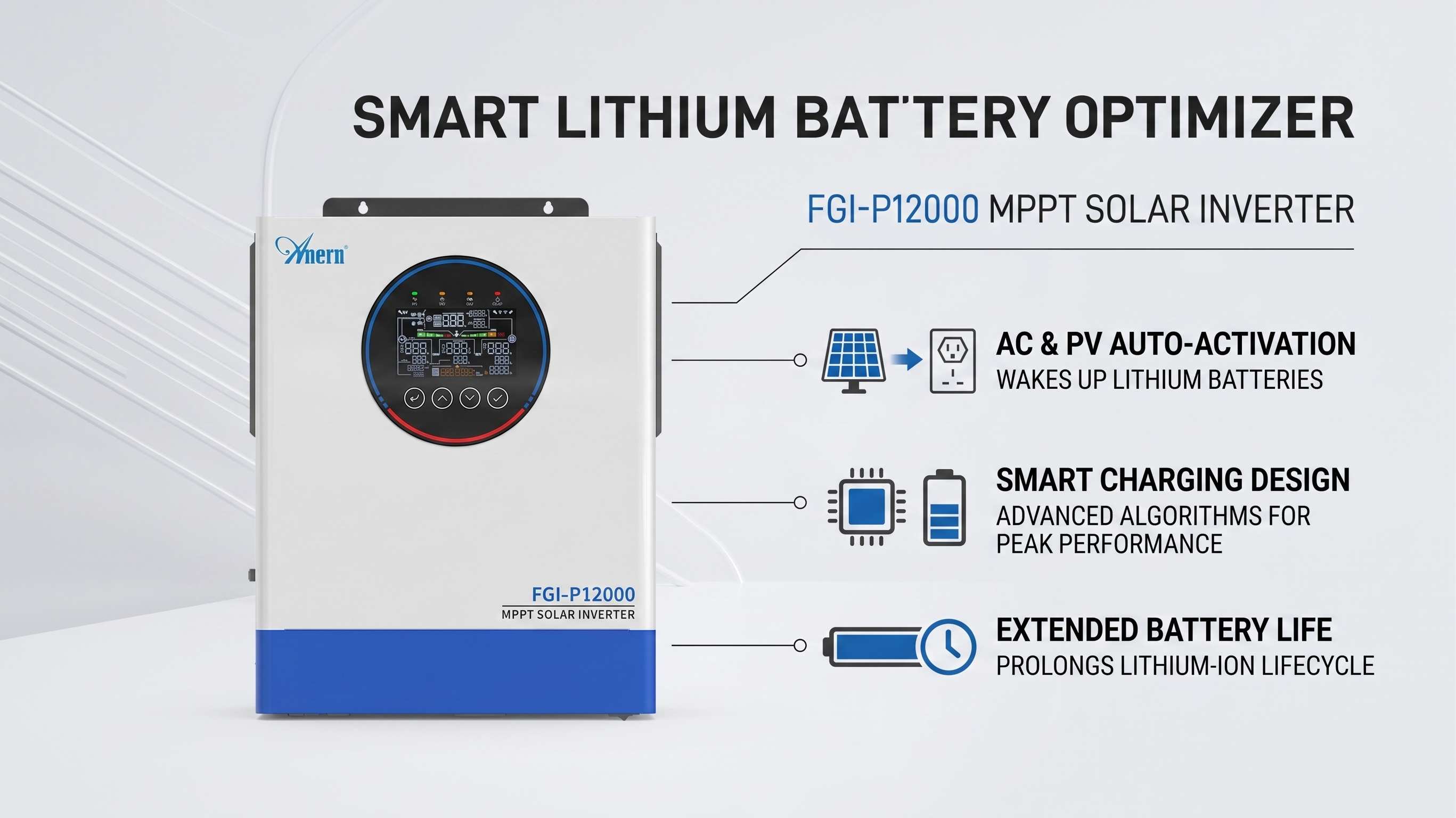

AC & PV Dual Charging Source & Long Battery Life
Smart charging technology employs appropriate charging schemes based on different environments and battery conditions to protect the battery and extend its lifespan.
Stable Current & Adaptable to Various Environments
With a built-in MPPT solar controller and a maximum charging current of 120A, the anti-glare kit is sufficient to meet the needs of various environments.

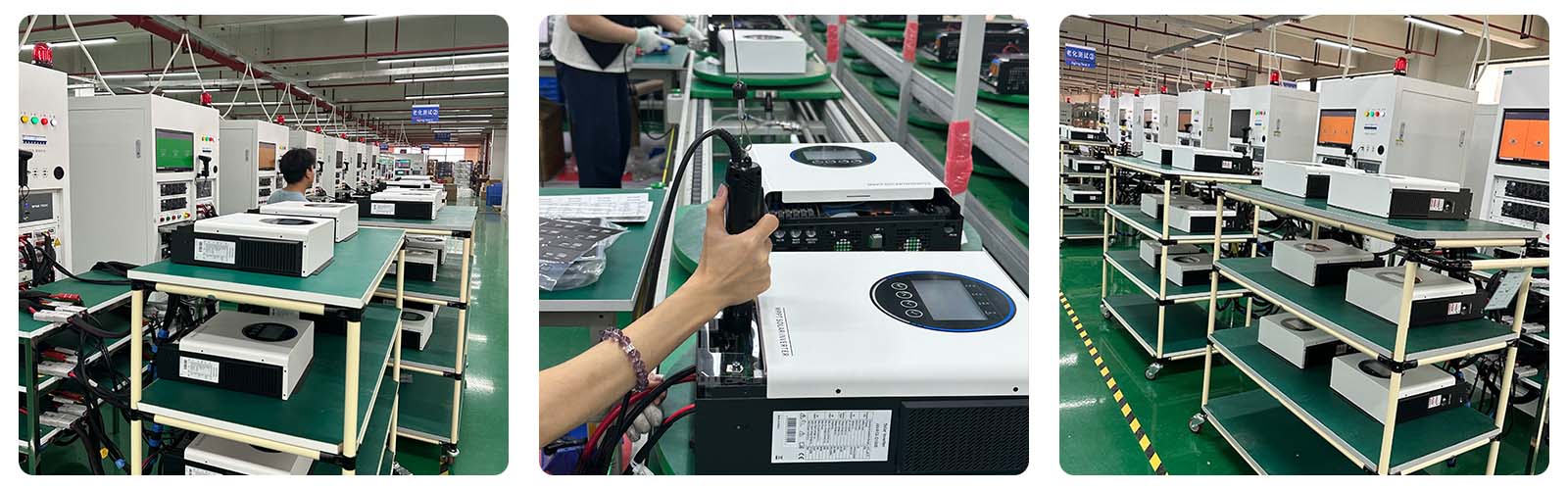

6kw-12kw Multiple Parallel Connections MPPT Solar Inverter Factory
Anern Inverter Factory specializes in the design, development and production of advanced solar inverters to optimize product stability, intelligence and environmental adaptability. All products are certified with ISO9001, CE, ROHS and TUV, fully meeting international quality standards. With mature manufacturing technology and rich industry experience, Anern is dedicated to providing global customers with reliable, high-efficiency and cost-effective solar inverter products.
